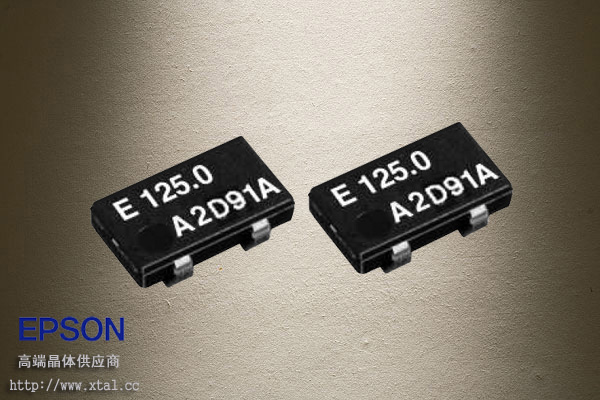

TCO-7085X1A2 125.0000M,125MHz有源晶振,EPSON爱普生晶振,3.3V,25PPM

当前位置:首页 » 加科电子产品中心 » 晶振规格书 » TCO-7085X1A2 125.0000M,125MHz有源晶振,EPSON爱普生晶振,3.3V,25PPM

prevnext

查看全部大图

TCO-7085X1A2 125.0000M,125MHz有源晶振,EPSON爱普生晶振,3.3V,25PPM

产品分类：晶振规格书

订购热线：0755-33533774

跟此产品相关的产品

: SG-9001LB C05P 16.0000MCL0,EPSON爱普生晶振,16MHz有源晶振

: SG-9001JC C02P 40.0000MC,40MHz有源晶振,EPSON爱普生晶振

: SG-8101CG 48.0000M-TBGPA0,EPSON爱普生晶振,48MHz有源晶振,2520晶振

产品详情

TCO-7085D1A2 20.0000M	20MHz	5V	±25ppm	-20°C ~ 70°C
TCO-7085X1A 20.0000M	20MHz	3.3V	±25ppm	0°C ~ 70°C
TCO-7085X1A 22.5792M	22.5792MHz	3.3V	±25ppm	0°C ~ 70°C
TCO-7085X1A 24.5760M	24.576MHz	3.3V	±25ppm	0°C ~ 70°C
TCO-7085X1A 25.5760M	25.576MHz	3.3V	±25ppm	0°C ~ 70°C
TCO-7085X1A 75.0000M	75MHz	3.3V	±25ppm	0°C ~ 70°C
TCO-7085X1A1 2.0480M	2.048MHz	3.3V	±25ppm	-10°C ~ 70°C
TCO-7085X1A1 20.0000M	20MHz	3.3V	±25ppm	-10°C ~ 70°C
TCO-7085X1A1 25.0000M	125MHz	3.3V	±25ppm	0°C ~ 70°C
TCO-7085X1A1 50.0000M	50MHz	3.3V	±25ppm	-10°C ~ 70°C
TCO-7085X1A2 125.0000M	125MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7085X1A2 20.0000M	20MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7085X1A2 25.0000M	25MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7085X1A2 26.0000M	26MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7085X1A2 40.0000M	40MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7085X1A2 50.0000M	50MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7085X1A2 54.0000M	54MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7085X1A2 8.1920M	8.192MHz	3.3V	±25ppm	-20°C ~ 70°C
TCO-7086D1A 20.0000M0	20MHz	5V	-	0°C ~ 70°C
TCO-7086D1A 24.0000M0	24MHz	5V	-	0°C ~ 70°C
TCO-7086D1A 32.0000M0	32MHz	5V	-	0°C ~ 70°C
TCO-7086D1A2 16.0000M	16MHz	5V	±50ppm	-20°C ~ 70°C
TCO-7086D1A2 4.0000M	4MHz	5V	±50ppm	-20°C ~ 70°C
TCO-7086D1A2 6.0000M	6MHz	5V	±50ppm	-20°C ~ 70°C
TCO-7086D1A4 16.0000M	16MHz	5V	±50ppm	-40°C ~ 85°C
TCO-7086D1A4 24.0000M3	24MHz	5V	-	-40°C ~ 85°C
TCO-7086X1A 100.0000M	100MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A 100.0000M3	100MHz	3.3V	-	0°C ~ 70°C
TCO-7086X1A 14.7456M0	14.7456MHz	3.3V	-	0°C ~ 70°C
TCO-7086X1A 16.0000M	16MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A 25.0000M	25MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A 25.0000M0	25MHz	3.3V	-	0°C ~ 70°C
TCO-7086X1A 32.7680M	32.768MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A 50.0000M	50MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A 78.36432M	78.36432MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A1 100.0000M	100MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A1 18.4320M	18.432MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A1 20.0000M	20MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A1 25.0000M	125MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A1 25.0000M3	25MHz	3.3V	±50ppm	-10°C ~ 85°C
TCO-7086X1A1 27.0000M	27MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A1 33.0000M	133MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A1 33.3330M	33.333MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A1 40.0000M	140MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A1 50.0000M	150MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7086X1A1 60.0000M	60MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A1 66.0000M	66MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A1 75.0000M	75MHz	3.3V	±50ppm	-10°C ~ 70°C
TCO-7086X1A2 18.4320M	18.432MHz	3.3V	±50ppm	-20°C ~ 70°C
TCO-7086X1A2 19.4400M	19.44MHz	3.3V	±50ppm	-20°C ~ 70°C
TCO-7086X1A2 25.0000M	25MHz	3.3V	±50ppm	-20°C ~ 70°C
TCO-7086X1A2 7.3728M	7.3728MHz	3.3V	±50ppm	-20°C ~ 70°C
TCO-7086X1A2 80.0000M	80MHz	3.3V	±50ppm	-20°C ~ 70°C
TCO-7086X1A4 10.0000M	10MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 10.0000M3	10MHz	3.3V	-	-40°C ~ 85°C
TCO-7086X1A4 100.0000M	100MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 125.0000M	125MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 156.2500M	156.25MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 16.3840M	16.384MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 25.0000M3	25MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 33.0000M	33MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 40.0000M	40MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 50.0000M	50MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 60.0000M	60MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 66.6600M	66.66MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 70.6560M	70.656MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 75.0000M3	75MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 78.64320M	78.6432MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7086X1A4 80.0000M	80MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7087D1A 16.0000M	16MHz	5V	±100ppm	0°C ~ 70°C
TCO-7087D1A 16.0000M3	16MHz	5V	-	0°C ~ 70°C
TCO-7087D1A 6.0000M0	6MHz	5V	±100ppm	0°C ~ 70°C
TCO-7087D1A1 10.0000M	10MHz	5V	±100ppm	-10°C ~ 70°C
TCO-7087D1A1 10.0000M3	10MHz	5V	-	-10°C ~ 70°C
TCO-7087D1A2 40.0000M	40MHz	5V	±100ppm	-20°C ~ 70°C
TCO-7087D1A2 40.0000M3	40MHz	5V	-	-20°C ~ 70°C
TCO-7087D1A2 50.0000M	50MHz	5V	±100ppm	-20°C ~ 70°C
TCO-7087D1A2 64.0000M3	64MHz	5V	-	-20°C ~ 70°C
TCO-7087D1A4 20.0000M	20MHz	5V	±100ppm	-40°C ~ 85°C
TCO-7087D1A4 29.4912M	29.4912MHz	5V	±100ppm	-40°C ~ 85°C
TCO-7087D1A4 29.4912M3	29.4912MHz	5V	-	-40°C ~ 85°C
TCO-7087D1A4 48.0000M0	48MHz	5V	-	-40°C ~ 85°C
TCO-7087X1A 100.0000M3	100MHz	3.3V	-	0°C ~ 70°C
TCO-7087X1A 19.6608M	19.6608MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7087X1A 20.0000M0	20MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7087X1A 27.0000M	27MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7087X1A 33.0000M	33MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7087X1A 50.0000M0	50MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7087X1A1 100.0000M	100MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 100.0000M0	100MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 16.0000M	16MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 25.0000M	125MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7087X1A1 33.3333M	33.3333MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 40.0000M	140MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7087X1A1 48.0000M	48MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 50.0000M	50MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 66.0000M	66MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 66.6667M	66.6667MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A1 75.0000M	75MHz	3.3V	±100ppm	-10°C ~ 70°C
TCO-7087X1A2 100.0000M	100MHz	3.3V	±100ppm	-20°C ~ 70°C
TCO-7087X1A2 14.31818M	14.31818MHz	3.3V	±100ppm	-20°C ~ 70°C
TCO-7087X1A2 20.0000M	20MHz	3.3V	±100ppm	-20°C ~ 70°C
TCO-7087X1A2 28.8000M	28.8MHz	3.3V	±100ppm	-20°C ~ 70°C
TCO-7087X1A2 40.0000M	40MHz	3.3V	±100ppm	-20°C ~ 70°C
TCO-7087X1A2 50.0000M	50MHz	3.3V	±100ppm	-20°C ~ 70°C
TCO-7087X1A4 1.6384M	1.6384MHz	3.3V	±100ppm	-40°C ~ 85°C
TCO-7087X1A4 155.5200M	155.52MHz	3.3V	±100ppm	-40°C ~ 85°C
TCO-7087X1A4 16.0000M	16MHz	3.3V	±100ppm	-40°C ~ 85°C
TCO-7087X1A4 24.0000M	24MHz	3.3V	±100ppm	-40°C ~ 85°C
TCO-7087X1A4 4.0000M	4MHz	3.3V	±100ppm	-40°C ~ 85°C
TCO-7087X1A4 4.0000M3	4MHz	3.3V	-	-40°C ~ 85°C
TCO-7087X1A4 8.0000M	48MHz	3.3V	±100ppm	0°C ~ 70°C
TCO-7106X1A 18.4320M	18.432MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7106X1A 50.0000M	50MHz	3.3V	±50ppm	0°C ~ 70°C
TCO-7106X1A1 40.0000M0	40MHz	3.3V	-	-10°C ~ 70°C
TCO-7106X1A4 14.7456M	14.7456MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 14.7456M3	14.7456MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 16.3840M	16.384MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 16.3840M3	16.384MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 20.0000M	20MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 24.0000M3	24MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 25.0000M	25MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 25.0000M0	25MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 25.0000M3	25MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 27.0000M	27MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 33.0000M0	33MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 33.0000M3	33MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 33.3330M	33.333MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 33.3330M0	33.333MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 40.0000M3	40MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 48.0000M	48MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 50.0000M	50MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 66.0000M3	66MHz	3.3V	-	-40°C ~ 85°C
TCO-7106X1A4 66.6600M0	66.66MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 66.6600M3	66.66MHz	3.3V	±50ppm	-40°C ~ 85°C
TCO-7106X1A4 66.6670M3	66.667MHz	3.3V	-	-40°C ~ 85°C
TCO-7107X1A2 4.9152M0	4.9152MHz	3.3V	-	-20°C ~ 70°C
TCO-7107X1A4 23.6880M	23.688MHz	3.3V	±100ppm	-40°C ~ 85°C
TCO-7107X1A4 25.0000M	25MHz	3.3V	±100ppm	-40°C ~ 85°C
TCO-7107X1A4 60.0000M	60MHz	3.3V	±100ppm	-40°C ~ 85°C
