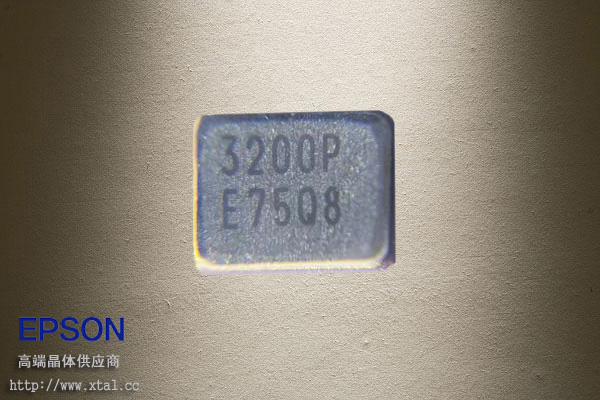

Q22FA1280013100,FA-128,EPSON晶振,32MHz贴片晶振,9PF,10PPM

产品分类：晶振规格书

订购热线：0755-33533774

跟此产品相关的产品

: X1E000251017900,32MHz晶振,FA-118T,爱普生晶振,2016封装,8PF,10PPM

: X1E000451000726,FA1008AN,59.97MHz晶振,EPSON爱普生晶振,1008封装,8PF,10PPM

: X1E0000210019,16MHz晶振,TSX-3225,9PF,10PPM,爱普生EPSON晶振

产品详情

Q22FA1280037200	FA-128	19.200000MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280055200	FA-128	19.200000MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280014100	FA-128	20.000000MHz	10 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280022200	FA-128	20.000000MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280023200	FA-128	20.000000MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280026100	FA-128	20.000000MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280033500	FA-128	20.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280034600	FA-128	20.000000MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280044100	FA-128	20.000000MHz	8 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280044200	FA-128	20.000000MHz	12.5 pF	+/-20 ppm	-20 to +85 °C
Q22FA1280054100	FA-128	20.000000MHz	15 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280001300	FA-128	24.000000MHz	16 pF	+/-30 ppm	-25 to +70 °C
Q22FA1280001400	FA-128	24.000000MHz	16 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280002200	FA-128	24.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280003000	FA-128	24.000000MHz	12 pF	+/-30 ppm	-20 to +70 °C
Q22FA1280003500	FA-128	24.000000MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280003700	FA-128	24.000000MHz	12 pF	+/-50 ppm	-20 to +75 °C
Q22FA1280003800	FA-128	24.000000MHz	10 pF	+/-50 ppm	-20 to +75 °C
Q22FA1280005300	FA-128	24.000000MHz	12 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280005400	FA-128	24.000000MHz	8 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280006700	FA-128	24.000000MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280011400	FA-128	24.000000MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280012000	FA-128	24.000000MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280012500	FA-128	24.000000MHz	6 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280014500	FA-128	24.000000MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280014600	FA-128	24.000000MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280016800	FA-128	24.000000MHz	12.5 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280016900	FA-128	24.000000MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280020100	FA-128	24.000000MHz	18 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280021300	FA-128	24.000000MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280024400	FA-128	24.000000MHz	10 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280025000	FA-128	24.000000MHz	9 pF	+/-20 ppm	-40 to +85 °C
Q22FA1280027100	FA-128	24.000000MHz	8 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280030400	FA-128	24.000000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280031400	FA-128	24.000000MHz	18 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280032600	FA-128	24.000000MHz	12 pF	+/-20 ppm	-20 to +70 °C
Q22FA1280038700	FA-128	24.000000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280039800	FA-128	24.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280042000	FA-128	24.000000MHz	8 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280046300	FA-128	24.000000MHz	7 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280046700	FA-128	24.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280046800	FA-128	24.000000MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280048900	FA-128	24.000000MHz	12 pF	+/-10 ppm	-20 to +85 °C
Q22FA1280049500	FA-128	24.000000MHz	6 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280049900	FA-128	24.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280052600	FA-128	24.000000MHz	8.5 pF	+/-9 ppm	-10 to +70 °C
Q22FA1280056100	FA-128	24.000000MHz	12 pF	+/-20 ppm	-40 to +85 °C
Q22FA1280058800	FA-128	24.000000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280059400	FA-128	24.000000MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280066900	FA-128	24.000000MHz	10 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280069200	FA-128	24.000000MHz	18 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280012700	FA-128	24.576000MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280035700	FA-128	24.576000MHz	12 pF	+/-50 ppm	-40 to +85 °C
Q22FA1280053300	FA-128	24.576000MHz	20 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280063700	FA-128	24.576000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280009000	FA-128	25.000000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280010500	FA-128	25.000000MHz	12.5 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280010700	FA-128	25.000000MHz	10 pF	+/-50 ppm	-20 to +75 °C
Q22FA1280010800	FA-128	25.000000MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280012600	FA-128	25.000000MHz	8 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280015600	FA-128	25.000000MHz	6 pF	+/-30 ppm	-30 to +85 °C
Q22FA1280016000	FA-128	25.000000MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280016600	FA-128	25.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280018300	FA-128	25.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280018600	FA-128	25.000000MHz	18 pF	+/-50 ppm	-20 to +70 °C
Q22FA1280021400	FA-128	25.000000MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280021500	FA-128	25.000000MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280022500	FA-128	25.000000MHz	9 pF	+/-30 ppm	-30 to +85 °C
Q22FA1280022900	FA-128	25.000000MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280023600	FA-128	25.000000MHz	18 pF	+/-30 ppm	-20 to +70 °C
Q22FA1280023800	FA-128	25.000000MHz	18 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280026500	FA-128	25.000000MHz	18 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280029800	FA-128	25.000000MHz	20 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280031100	FA-128	25.000000MHz	18 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280033600	FA-128	25.000000MHz	7 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280038800	FA-128	25.000000MHz	16 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280039500	FA-128	25.000000MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280045000	FA-128	25.000000MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280045100	FA-128	25.000000MHz	6 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280047300	FA-128	25.000000MHz	6 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280048500	FA-128	25.000000MHz	20 pF	+/-30 ppm	-20 to +85 °C
Q22FA1280055900	FA-128	25.000000MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280056000	FA-128	25.000000MHz	18 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280056900	FA-128	25.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280057000	FA-128	25.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280001100	FA-128	26.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280002000	FA-128	26.000000MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280002400	FA-128	26.000000MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280002600	FA-128	26.000000MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280004700	FA-128	26.000000MHz	12 pF	+/-10 ppm	-20 to +85 °C
Q22FA1280013200	FA-128	26.000000MHz	15 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280014000	FA-128	26.000000MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280014800	FA-128	26.000000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280017000	FA-128	26.000000MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280022600	FA-128	26.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280023000	FA-128	26.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280035000	FA-128	26.000000MHz	8 pF	+/-20 ppm	-20 to +70 °C
Q22FA1280035200	FA-128	26.000000MHz	7 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280038600	FA-128	26.000000MHz	19 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280046100	FA-128	26.000000MHz	11 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280047000	FA-128	26.000000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280054800	FA-128	26.000000MHz	12 pF	+/-15 ppm	-40 to +105 °C
Q22FA1280000800	FA-128	27.000000MHz	10 pF	+/-30 ppm	-20 to +70 °C
Q22FA1280007000	FA-128	27.000000MHz	7 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280012100	FA-128	27.000000MHz	15 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280013500	FA-128	27.000000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280014900	FA-128	27.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280015800	FA-128	27.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280015900	FA-128	27.000000MHz	12 pF	+/-27 ppm	-20 to +70 °C
Q22FA1280018200	FA-128	27.000000MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280024200	FA-128	27.000000MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280025200	FA-128	27.000000MHz	12 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280033700	FA-128	27.000000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280041300	FA-128	27.000000MHz	20 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280066300	FA-128	27.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280068100	FA-128	27.000000MHz	7 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280002100	FA-128	27.120000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280003400	FA-128	27.120000MHz	8 pF	+/-15 ppm	-30 to +70 °C
Q22FA1280008500	FA-128	27.120000MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280009100	FA-128	27.120000MHz	7 pF	+/-50 ppm	-20 to +70 °C
Q22FA1280011200	FA-128	27.120000MHz	10 pF	+/-15 ppm	-20 to +75 °C
Q22FA1280012900	FA-128	27.120000MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280017400	FA-128	27.120000MHz	10 pF	+/-15 ppm	-30 to +85 °C
Q22FA1280018400	FA-128	27.120000MHz	10 pF	+/-30 ppm	-30 to +85 °C
Q22FA1280023300	FA-128	27.120000MHz	6 pF	+/-30 ppm	-30 to +85 °C
Q22FA1280030000	FA-128	27.120000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280031500	FA-128	27.120000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280036800	FA-128	27.120000MHz	8 pF	+/-15 ppm	-20 to +85 °C
Q22FA1280047600	FA-128	27.120000MHz	8 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280055100	FA-128	27.120000MHz	6 pF	+/-30 ppm	-40 to +105 °C
Q22FA1280056700	FA-128	27.120000MHz	8 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280048000	FA-128	28.636300MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280021800	FA-128	30.000000MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280021900	FA-128	30.000000MHz	6 pF	+/-30 ppm	-30 to +85 °C
Q22FA1280024100	FA-128	30.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280026700	FA-128	30.000000MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280036900	FA-128	30.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280045400	FA-128	31.250000MHz	10 pF	+/-50 ppm	-40 to +85 °C
Q22FA1280065800	FA-128	31.948800MHz	8 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280001800	FA-128	32.000000MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280002500	FA-128	32.000000MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280003100	FA-128	32.000000MHz	18 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280004300	FA-128	32.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280009200	FA-128	32.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280011600	FA-128	32.000000MHz	12 pF	+/-15 ppm	-20 to +70 °C
Q22FA1280011900	FA-128	32.000000MHz	10 pF	+/-20 ppm	-20 to +75 °C
Q22FA1280013100	FA-128	32.000000MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280013700	FA-128	32.000000MHz	9 pF	+/-20 ppm	-30 to +85 °C
Q22FA1280019100	FA-128	32.000000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280019700	FA-128	32.000000MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280020200	FA-128	32.000000MHz	6.7 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280030500	FA-128	32.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280033400	FA-128	32.000000MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280036400	FA-128	32.000000MHz	8 pF	+/-20 ppm	-30 to +85 °C
Q22FA1280039300	FA-128	32.000000MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280040100	FA-128	32.000000MHz	9 pF	+/-30 ppm	-30 to +80 °C
Q22FA1280043800	FA-128	32.000000MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280045200	FA-128	32.000000MHz	8 pF	+/-10 ppm	-40 to +105 °C
Q22FA1280045300	FA-128	32.000000MHz	8 pF	+/-9 ppm	-40 to +105 °C
Q22FA1280050200	FA-128	32.000000MHz	6 pF	+/-20 ppm	-40 to +85 °C
Q22FA1280051400	FA-128	32.000000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280051700	FA-128	32.000000MHz	6 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280053000	FA-128	32.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280036700	FA-128	32.253000MHz	8 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280047100	FA-128	33.330000MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280030300	FA-128	36.000000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280006400	FA-128	37.400000MHz	18 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280022700	FA-128	37.400000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280043600	FA-128	37.400000MHz	17 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280065600	FA-128	37.400000MHz	18 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280068800	FA-128	37.400000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280000700	FA-128	38.400000MHz	10 pF	+/-15 ppm	-20 to +85 °C
Q22FA1280001000	FA-128	38.400000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280004500	FA-128	38.400000MHz	8.5 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280010000	FA-128	38.400000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280014700	FA-128	38.400000MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280050600	FA-128	38.400000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280064600	FA-128	38.400000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280070500	FA-128	39.000000MHz	10 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280009400	FA-128	40.000000MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280009900	FA-128	40.000000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280010100	FA-128	40.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280015200	FA-128	40.000000MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280031800	FA-128	40.000000MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280033200	FA-128	40.000000MHz	12 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280039600	FA-128	40.000000MHz	10 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280059800	FA-128	40.000000MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280065500	FA-128	40.000000MHz	10 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280069700	FA-128	40.000000MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280006100	FA-128	44.000000MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280000200	FA-128	48.000000MHz	12 pF	+/-50 ppm	-20 to +70 °C
Q22FA1280004400	FA-128	48.000000MHz	16 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280006200	FA-128	48.000000MHz	8 pF	+/-30 ppm	-20 to +70 °C
Q22FA1280008900	FA-128	48.000000MHz	8 pF	+/-30 ppm	-30 to +85 °C
Q22FA1280014300	FA-128	48.000000MHz	6 pF	+/-50 ppm	-30 to +85 °C
Q22FA1280015000	FA-128	48.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280018700	FA-128	48.000000MHz	16 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280028400	FA-128	48.000000MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280030100	FA-128	48.000000MHz	12 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280030200	FA-128	48.000000MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280032100	FA-128	48.000000MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA1280046900	FA-128	48.000000MHz	8 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280047900	FA-128	48.000000MHz	8 pF	+/-50 ppm	-20 to +75 °C
Q22FA1280048400	FA-128	48.000000MHz	6 pF	+/-10 ppm	-20 to +70 °C
Q22FA1280057700	FA-128	48.000000MHz	7 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280034500	FA-128	50.000000MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280037600	FA-128	50.000000MHz	20 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280053100	FA-128	50.000000MHz	10 pF	+/-15 ppm	-40 to +85 °C
Q22FA1280058100	FA-128	50.000000MHz	8 pF	+/-30 ppm	-40 to +85 °C
Q22FA1280069300	FA-128	50.000000MHz	18 pF	+/-20 ppm	-40 to +85 °C
Q22FA1280041800	FA-128	52.000000MHz	8 pF	+/-30 ppm	-30 to +85 °C
Q22FA1280049700	FA-128	52.000000MHz	6.7 pF	+/-10 ppm	-20 to +75 °C
Q22FA1280051900	FA-128	52.000000MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA1280065200	FA-128	52.000000MHz	10 pF	+/-25 ppm	-40 to +85 °C
Q22FA1280002200	FA-128	24.000000MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA1280050700	FA-128	16.000000MHz	9 pF	+/-10 ppm
Q22FA1280040000	FA-128	16.000000MHz	8 pF	+/-10 ppm
Q22FA1280007900	FA-128	33.600000MHz	9 pF	+/-10 ppm
Q22FA1280034100	FA-128	16.000000MHz	10 pF	+/-10 ppm
Q22FA1280034800	FA-128	16.000000MHz	8 pF	+/-30 ppm
Q22FA1280036600	FA-128	16.000000MHz	7 pF	+/-10 ppm
Q22FA1280040500	FA-128	16.000000MHz	12 pF	+/-30 ppm
Q22FA1280041600	FA-128	16.000000MHz	22 pF	+/-30 ppm
Q22FA1280045800	FA-128	16.000000MHz	16 pF	+/-10 ppm
Q22FA1280048700	FA-128	16.000000MHz	99 pF	+/-30 ppm
Q22FA1280051300	FA-128	16.000000MHz	10 pF	+/-30 ppm
Q22FA1280052900	FA-128	16.000000MHz	6 pF	+/-10 ppm
Q22FA1280065400	FA-128	25.000625MHz	10 pF	+/-10 ppm
Q22FA1280066200	FA-128	16.000000MHz	12 pF	+/-10 ppm
Q22FA1280023400	FA-128	16.000000MHz	9 pF	+/-10 ppm

EPSON晶振产品分类

爆款产品

新闻中心

11
2024-09
30
2024-07
30
2024-05
15
2024-05
14
2024-05
是一种频率元器件,其主要作用是进行频率稳定和时钟信号产生,它由压电石英晶振和配套的电路主板组成,可实现高精度频率稳定和快速电信号处理,KYOCERA京瓷晶振旗下产品广泛应用于计算机,通讯设备,汽车电子,家电,时钟定时模块,可穿戴智能电子手表,可视电话等各种应用,作为全球领先的日系知名品牌晶振制造商之一,京瓷晶振为高科技产业提供了精准的时钟信号,帮助各种电子设备实现高效,稳定的运行。
17
2024-04
21
2024-03

将详细探讨KDS温补晶振的应用领域,优势以及未来发展趋势。
03
2024-01
凭借其先进的技术和广泛的部署,在全球范围内赢得了用户的信赖。
28
2023-12
07
2023-12
30
2023-11
精确时间的基石
台湾幸运5大家好今天我们要来聊聊32.768KHz时钟晶振这个频率元器件,它可能没有那些炫酷的科技产品那么引人注目,但是它却在默默地守护着我们的时间,这个小巧的元件,通常只有几毫米大小,却能在各种电子设备中发挥出强大的作用,NDK晶振作为日本一线知名品牌,其中NX3215SA-32.768K-STD-MUA-8（12.5PF）NX3215SA-32.768K-STD-MUA-9（9PF）NX3215SA-32.768KHZ-EXS00A-MU01076（7PF）NX3215SA-32.768K-STD-MUA-14 （6PF）NX2012SA-32.768K-STD-MUB-1（2012封装,12.5PF）这些常用晶振料号在许多领域具有广泛的应用,在嵌入式系统中,它被用作实时时钟（RTC）的时钟源,为系统提供准确的时间基准,在智能卡和身份识别设备中,晶振为数据传输提供了可靠的时钟信号。
07
2023-11
07
2023-11
台湾幸运5请允许我带你走进这个隐藏在电子设备背后的世界,晶振如同一位高贵的舞者,在时间的舞台上跳跃用她独特的节奏引领着整个数字世界的步伐,它是一种无形的力量，一种难以捉摸的韵律,让我们的电子设备能够准确地跳动,让每一个微处理器,每一个内存芯片都能在正确的时刻完成他们的任务,晶振作为这个舞蹈的领舞者更是以其独特的频率掌控着整个数字世界的节奏,她的每一次跳动,都代表着一次电信号的脉冲,每一次脉冲,都使我们的电子设备能够准确地完成一次操作,晶振的频率就是智能数字世界的"心跳"，稳定而有力。
03
2023-11

支撑电子设备高效运行
京瓷晶振是京瓷集团旗下的频率控制元件制造商,专门生产各种高品质的晶振和有源晶振,作为全球知名的频率控制元件制造商,京瓷晶振的产品在电子设备领域得到了广泛的应用,本文将介绍京瓷晶振的常用型号及其特点。
03
2023-11
台湾幸运5将介绍一些常用的进口晶振频率及其应用领域。
03
2023-11
01
2023-11
23
2023-10
12
2023-10
18
2023-09
13
2023-09
将详细介绍这些料号及其特点。首先我们来了解一下爱普生晶振的网红料号之FC-135。FC-135是一种高精度,高品质的32.768kHz系列贴片晶振,具有高稳定性和可靠性等特点,因此在各种电子设备中广泛使用,尤其在智能家居,智能安防,智能照明等消费电子领域FC-135料号备受追捧。

29
2023-08
16
2023-08
03
2023-08
01
2023-08
28
2023-07
27
2023-07
20
2023-07

14
2023-07
12
2023-07
07
2023-07
05
2023-07
和AA08000006晶振成为了市场上备受瞩目的产品之一,AA08000016晶振和AA08000006晶振独特的设计使得其尺寸小巧,适用于各种紧凑型的电子设备,AA08000016晶振频率为8MHz,负载电容18PF,频率公差±30ppm,等效串联电阻(ESR)150Ω,工作温度-40°C+85°C,AA08000006晶振频率8MHz,负载电容10PF,频率公差±30ppm,等效串联电阻(ESR)150Ω,工作温度-40°C+85°C两款晶振适用于许多应用领域,如通信设备,计算机硬件,工业自动化等。
30
2023-06
28
2023-06
20
2023-06

15
2023-06

精选产品

EPSON CRYSTAL

热销品牌

简介

EPSON爱普生晶振具有超小型,薄型,质地轻的特点,使得焊接更为方便简单,它们具备优良的耐热性,耐环境特性,爱普生有多种型号,包括贴片FC-12M,FC1610AN,TSX-3225,FA-20H等以及贴片晶振如FC-135等,其中32.768KHz贴片时钟晶振在计算机,控制器和微处理器等领域有广泛应用,爱普生晶振产品在封装时能发挥比陶瓷外壳更好的耐冲击性,提高了产品的耐用性,在功耗方面爱普生也表现出色有助于降低电子设备的整体能耗,EPSON爱普生进口晶振台湾幸运5现货商品的产品介绍和图片,请浏览我们的网站www.smdxtal.com/。

^{台湾幸运5}

联系人：黄河 _15602443498

座机：_{0755-33533774}

邮箱：_{jiakedz@163.com}

QQ：_3080074590

_地址：_{深圳市宝安区13区宝民一路白金大厦13F}

_网址：_{https://ysgcompany.com}

Q22FA1280013100 FA-128 EPSON晶振 32MHz贴片晶振 9PF 10PPM

* 表示必填采购：Q22FA1280013100,FA-128,EPSON晶振,32MHz贴片晶振,9PF,10PPM

* 联系人：	请填写您的真实姓名
公司名称：	请填写您的公司名称
联系电话：
* 手机号码：	请填写您的联系电话
电子邮件：
联系地址：
* 采购意向描述：
	请填写采购的产品数量和产品描述，方便我们进行统一备货。
验证码：
